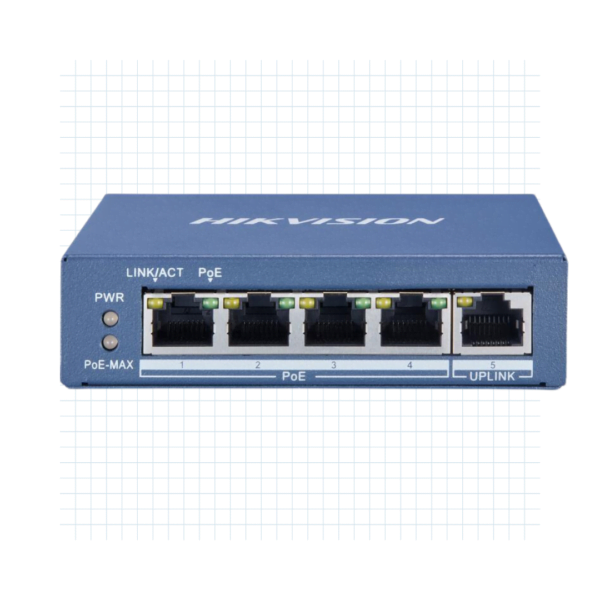

Hikvision DS-3E0505P-E/M

Description

• General
• ShellMetal material
• Net Weight0.265 kg (0.58 lb)
• Gross Weight0.759 kg (1.67 lb)
• Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 0.8 A
• Max. Power Consumption38 W
• Power Consumption in Idle3 W
• Installation ModeDesk-Mounted,Wall-Mounted
• Surge Protection6 KV

• Network Parameters
• Ports4 × Gigabit PoE port,1 × Gigabit RJ45 port
• MAC Address Table2 K
• Switching Capacity10 Gbps
• Packet Forwarding Rate7.44 Mpps
• Internal Cache1 Mbits

• PoE Power Supply
• PoE StandardIEEE 802.3af;IEEE 802.3at
• PoE Power PinEnd-span: 1/2(+), 3/6(-)
• PoE PortPoE: Ports 1 to 4
• Max. Port Power30 W
• PoE Power Budget35 W

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• Chemistry

  CE-RoHS (201165EU);

  WEEE (201219EU);

  Reach (Regulation (EC) No.19072006)
