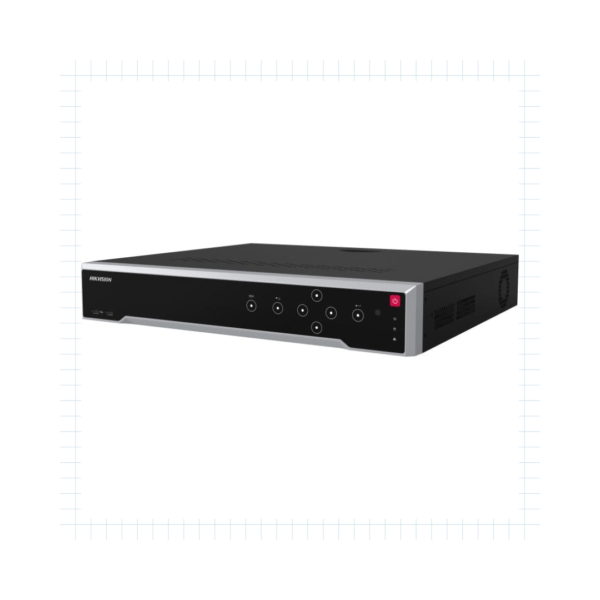

Hikvision DS-7764NI-M4

Description

• • • • • • • Video and Audio
            • IP Video Input

              64-ch

              Up to 32 MP resolution

              *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

            • Incoming Bandwidth400 Mbps
            • Outgoing Bandwidth400 Mbps
            • HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
            • HDMI 2 Output

              4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

              *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

            • VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
            • Video Output ModeHDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output
            • CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
            • Audio Output1-ch, RCA (Linear, 1 KΩ)
            • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
            • Decoding
            • Decoding FormatH.265+/H.265/H.264+/H.264
            • Recording Resolution

              32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

              *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

            • Synchronous Playback16-ch
            • Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
            • Dual-Stream RecordingSupport
            • Stream TypeVideo, Video & Audio
            • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
            • Network
            • Remote Connection128
            • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
            • Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
            • Camera Access ProtocolONVIF(Version 2.5), RTSP
            • RAID
            • RAID TypeN/A
            • Auxiliary Interface
            • eSATA1 eSATA interface
            • SATA4 SATA interfaces
            • CapacityUp to 16 TB capacity for each disk
            • Serial Interface2 RS-485 (half-duplex), 1 RS-232
            • Alarm In/Out16/9
            • USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
            • Ctrl 12V

              Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

              *: The Ctrl 12V power is controlled by alarm output 9.

            • DC 12V12 VDC, 1 A power output
            • General
            • Power Supply100 to 240 VAC, 50 to 60 Hz
            • Consumption≤ 15 W (without HDD)
            • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
            • Working Humidity10% to 90%
            • Chassis19-inch rack-mounted 1.5U chassis
            • Dimension (W × D × H)445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
            • Weight≤ 5 kg (without HDD, 11 lb.)
            • Certification
            • FCCPart 15 Subpart B, ANSI C63.4-2014
            • CE

              EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

              9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
